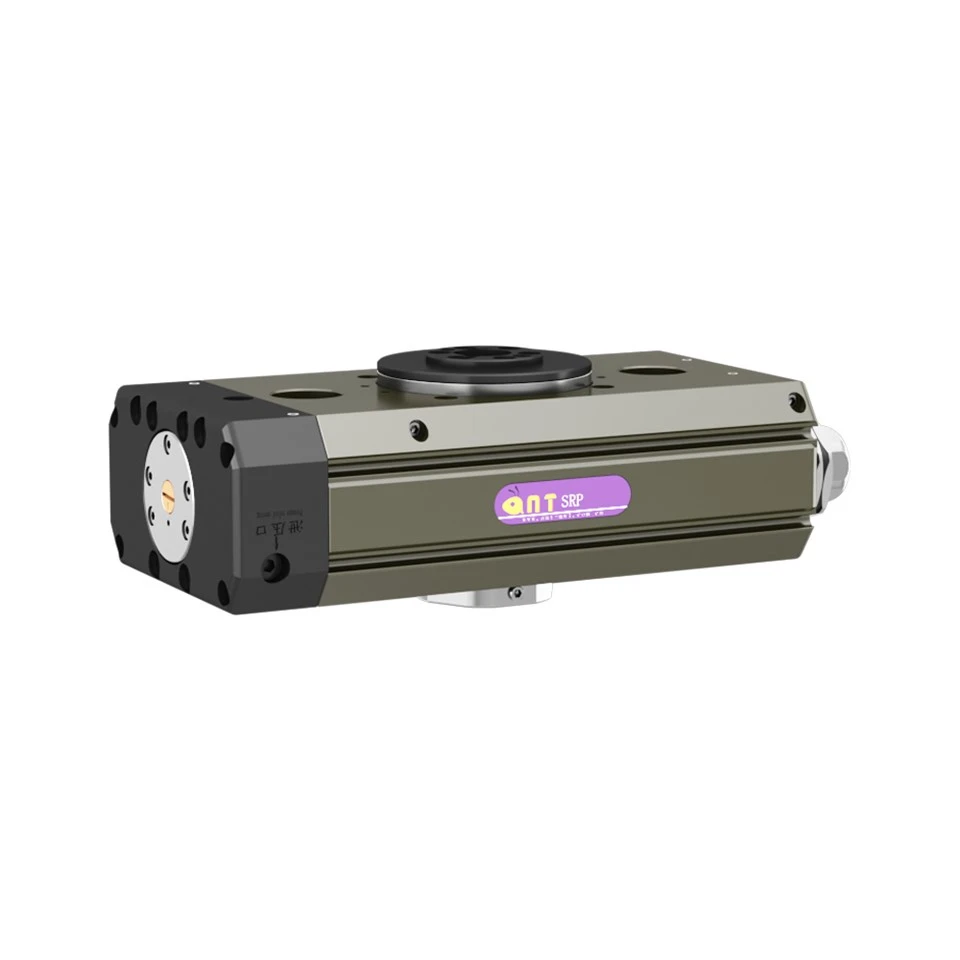

SRP Dual{0}Module Piston Rotary
Loo naqshadeeyay codsiyada u baahan saxnaan iyo faddarayn{0}} hawlgal bilaash ah
Hal-abuurka Injineeriyada Muhiimka ah
▌ Dual{{0}Rack Torque Amplification
○ Counter{0}} bistoonada dhaqaaqaku wad gears sax ah →Xawaaraha ugu sarreeya ee 108Nm(SRP63 @ 6bar)
90 darajo ama wareeg ah 180 darajo la dooran karohawsha - meelaynta la hagaajiyay
○ Hawo-mareenka gudaha iyo fiiladawaxay meesha ka saaraysaa tuubooyinka dibadda (IP64 shahaado haysta)
▌ Tilmaamaha Farsamada
|
Qaabka |
Torque @6bar |
Miisaanka |
Waqtiga Wareegga |
Wareegid |
Saxnaanta |
|
SRP30 |
10.5 Nm |
2.4kg |
1.0s/1.2s |
90 darajo / 180 darajo |
± 0.05 darajo |
|
SRP40 |
22 Nm |
4.36kg |
1.2s/1.5s |
90 darajo / 180 darajo |
± 0.07 darajo |
|
SRP50 |
49.5 Nm |
9.1kg |
1.6s/1.8s |
90 darajo / 180 darajo |
± 0.07 darajo |
|
SRP63 |
108 Nm |
26kg |
1.9s/2.1s |
90 darajo / 180 darajo |
± 0.1 darajo |
Tilmaamaha Muhiimka ah
► Centre Bore: Ø10-25mm ee marinka fiilada
► Barkinta Haydarooliga: nuugista shoogga la hagaajin karo
► Dareem diyaarsan: Jaceylka booska Electromagnetic
► Xadka Cadaadiska: 3-8 bar (4.5-8 bar ee SRP63)
Isticmaalka Hawada: 196-990 L/daqiiqo
► Heerkulka Heerkulka: 5-60 darajo
Saxnaanta - Codsiyada Muhiimka ah
Golaha Qalabka Caafimaadka
Jihaynta qaybta maqaar-gashiga qolalka nadiifka ah ee fasalka 5
Maareynta saxaaradda jeermis-diridda qalabka qalliinka
Qalabaynta dawada gaarsiinta
Wax-soo-saarka Semiconductor
Cajalka Wafer ee 180 darajo u rogrogaya labada dhinac-
Qalabaynta qufulka qolka vacuum
Saldhigyada toosinta sawir-qaadista
Habaynta cuntada
Hanuuninta khadka baakadaha Aseptic
Nidaamyada wareejinta alaabta rootiga
Nadiifi - gudaha -Meesha (CIP) otomaatiga ku habboon
Qalabka Elektrooniga ah
PCB panel 90 darajo tusmaynta alxanka koollada kormeerka
Muujinta isku xidhka saxda ah ee moduleka
Isku-xidhaha guryaha
Faa'iidooyinka tartanka
Halista Fadarka eberJidka gudaha ayaa ka hortagaya jiilka qayb ka mid ah
Dabacsanaanta xagashaUnug isku mid ah ayaa gacanta ku haya 90 darajo flips ama 180 dib u habayn
Xawaaraha saxda ah: 0.05 saxnaanta heerka 1.0s wakhtiga wareegga (SRP30-90)
Ilaalinta culayska badan: Dhamaadka makaanikada wuxuu istaagaa iyadoo la hagaajin karo ± 3 darajo
Xasaanadda Dayactirka: Adag - aluminium anodized ah waxay u adkaysataa kiimikooyinka dhaqda
Gabagabo
Module Rotary ee SRP wuxuu dib u qeexayaa dhaqdhaqaaqa saxda ahdual-Nidaamka wadista piston, gaarsiintawarshadaha - hirka hogaaminaya (108Nm)iyomicro- saxnaanta darajada (± 0.05 darajo)jawi nadiif ah iyo mid warshadeed labadaba. Jiddeeda gudaha ee kacaanku waxay meesha ka saaraysaa khataraha faddaraynta ee codsiyada caafimaadka iyo semiconductor iyadoo la siinayo ilaalinta deegaanka IP64. Wareegga 90 darajo/180 darajo ee la dooran karo ayaa awood u siinaya naqshadaynta goobta shaqada ee ugu fiican, oo leh barkin biyo-qabatin ah oo hubinaya gariir{5}} meelayn bilaash ah. Injineerada otomaatiga ah ee la dagaallamaya caqabadaha maaraynta fiilooyinka ama wasakhaynta qolka nadiifka ah, SRP waxay soo bandhigtaa waxqabad aan liidato iyada oo loo marayo xarrago farsamo.
Meesha saxda ah ee ay la kulanto wax-ku-oolnimada, taxanaha SRP waxa uu keenaa meelaynta xagal-la'aanta ah ee warshadaha 4.0 ee bay'ada ugu baahida badan.
